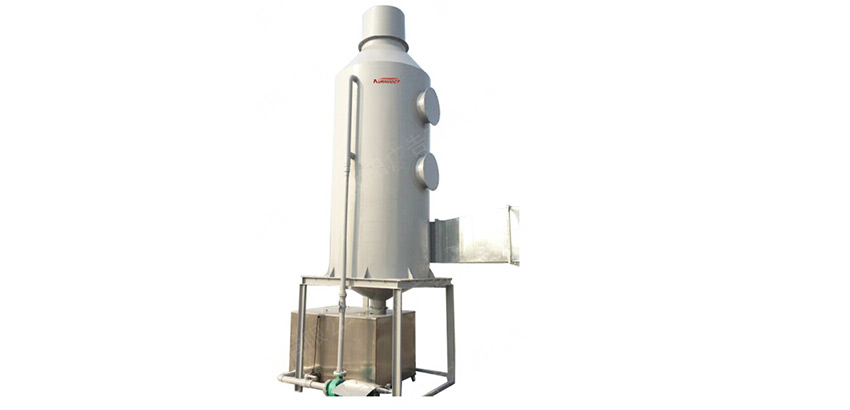

WPF1000
Product parameters
| Product Name: | Exhaust gas processor | Filter material type: | Water spray |
| Body material: | Steel plate | Scope of application: | 6200M3/H--10000M3/H |
| Applicable object: | Soot exhaust |
| specification φ·mm | Handing air volume m3/h | Tower height (mm) | Floor area m2 | Pump power(KW) |
| Φ300 | 560-650 | 4500 | 3.5 | 0.25 |
| Φ500 | 1550-1800 | 4500 | 4 | 0.25 |
| Φ600 | 2200-2600 | 4500 | 4 | 0.55 |
| Φ700 | 300-3540 | 4500 | 6 | 0.55 |
| Φ800 | 4800-5200 | 4500 | 6 | 1.1 |
| Φ1000 | 6200-10000 | 4500 | 6 | 1.5 |
| Φ1600 | 8000-14000 | 4600 | 8 | 4.5 |
| Φ2200 | 11000-1600 | 4800 | 9 | 5.5 |
| Φ2600 | 18000-23000 | 5200 | 12 | 5.5 |
| Φ3000 | 24000-30000 | 5500 | 12 | 7.5 |
| Φ3400 | 25000-38000 | 5800 | 15 | 7.5 |
